.▪ Screwed female ends to BSP.
.▪ Full bore & perfect right angle to ensure unobstructed flow.
.▪ High quality antirust coating on threads.
.▪ Hot galvanised with uniform zinc coating.
.▪ Superior grade malleability to ensure crack free installation.
.▪ Heavy pattern & superb in quality and performance.
.▪ Functionally sturdy and visually attractive.
.▪ Full threaded length and perfectly right angled to 90°. |
|
|
.▪ Test Pressure :
.▪ 25kg / cm2g (Hydraulic)
|
|
|
 |
|
| |
|

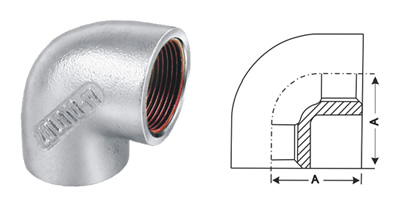

| Nominal Size (mm) |
A |
+ / - |
| 15 |
36 |
2 |
| 20 |
39 |
2 |
| 25 |
43 |
2 |
| 32 |
47 |
2 |
| 40 |
53 |
2.5 |
| 50 |
62 |
2.5 |
| 65 |
71 |
2.5 |
| 80 |
82 |
3 |
| 100 |
100 |
3 |
| 150 |
135 |
3.5 |
|
|
