.▪ Screwed female ends to BSP.
.▪ Full bore & perfect right angle to ensure unobstructed flow.
.▪ High quality antirust coating on threads.
.▪ Hot galvanised with uniform zinc coating.
.▪ Superior grade malleability to ensure crack free installation.
.▪ Heavy pattern & superb in quality and performance.
.▪ Functionally sturdy and visually attractive.
.▪ Full threaded length and perfectly right angled to 90°. |
|
|
.▪ Test Pressure :
.▪ 25kg / cm2g (Hydraulic)
|
|
|
 |
|
| |
|

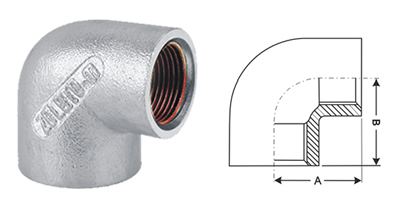

| Nominal Size (mm) |
A |
+ / - |
B |
+ / - |
| 20 x 15 |
36 |
2 |
35 |
2 |
| 25 x 15 |
39 |
2 |
36 |
2 |
| 32 x 15 |
44 |
2 |
37 |
2 |
| 40 x 15 |
47 |
2 |
38 |
2 |
| 50 x 15 |
52 |
2.5 |
39 |
2 |
| 65 x 15 |
59 |
2.5 |
42 |
2 |
| 80 x 15 |
67 |
2.5 |
45 |
2 |
| 100 x 15 |
80 |
3 |
48 |
2 |
|
|
|
|
|
| 25 x 20 |
40 |
2 |
39 |
2 |
| 32 x 20 |
45 |
2 |
40 |
2 |
| 40 x 20 |
48 |
2 |
41 |
2 |
| 50 x 20 |
53 |
2.5 |
42 |
2 |
| 65 x 20 |
60 |
2.5 |
45 |
2 |
| 80 x 20 |
68 |
2.5 |
48 |
2 |
| 100 x 20 |
81 |
3 |
51 |
2.5 |
|
|
|
|
|
| 32 x 25 |
46 |
2 |
42 |
2 |
| 40 x 25 |
49 |
2 |
45 |
2 |
| 50 x 25 |
54 |
2.5 |
48 |
2 |
| 65 x 25 |
62 |
2.5 |
49 |
2 |
| 80 x 25 |
69 |
2.5 |
51 |
2.5 |
| 100 x 25 |
82 |
3 |
55 |
2.5 |
|
|
|
|
|
| 40 x 32 |
50 |
2 |
48 |
2 |
| 50 x 32 |
58 |
2.5 |
51 |
2.5 |
| 65 x 32 |
65 |
2.5 |
53 |
2.5 |
| 80 x 32 |
70 |
2.5 |
56 |
2.5 |
| 100 x 32 |
85 |
3 |
62 |
2.5 |
|
|
|
|
|
| 50 x 40 |
58 |
2.5 |
54 |
2.5 |
| 65 x 40 |
66 |
2.5 |
56 |
2.5 |
| 80 x 40 |
73 |
2.5 |
58 |
2.5 |
| 100 x 40 |
85 |
3 |
66 |
2.5 |
|
|
|
|
|
| 65 x 50 |
67 |
2.5 |
62 |
2.5 |
| 80 x 50 |
74 |
2.5 |
64 |
2.5 |
| 100 x 50 |
85 |
3 |
68 |
2.5 |
|
|
|
|
|
| 80 x 65 |
76 |
3 |
72 |
2.5 |
| 100 x 65 |
89 |
3 |
76 |
3 |
|
|
|
|
|
| 100 x 80 |
92 |
3 |
84 |
3 |
|
|
