.▪ Screwed female ends to BSP.
.▪ Full bore & perfect right angle to ensure unobstructed flow.
.▪ High quality antirust coating on threads.
.▪ Hot galvanised with uniform zinc coating.
.▪ Superior grade malleability to ensure crack free installation.
.▪ Heavy pattern & superb in quality and performance.
.▪ Functionally sturdy and visually attractive.
.▪ Full threaded length with precise right angled diversion at 90°.


.▪ Test Pressure :
.▪ 25kg / cm2g (Hydraulic)

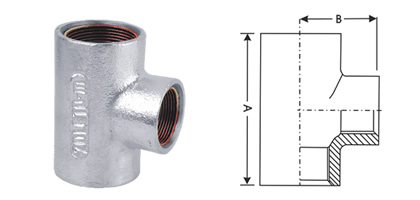

Nominal Size (mm) A ± B ±
20 x 15 66 2.5 36 2
25 x 15 68 2.5 37 2
32 x 15 72 2.5 42 2
40 x 15 76 3 47 2
50 x 15 80 3 53 2.5
65 x 15 84 3 59 2.5
80 x 15 91 3 67 2.5
100 x 15 98 3 81 3
25 x 20 72 2.5 38 2
32 x 20 76 3 43 2
40 x 20 80 3 48 2
50 x 20 84 3 54 2.5
65 x 20 91 3 59 2.5
80 x 20 93 3 67 2.5
100 x 20 106 3.5 81 3
32 x 25 84 3 44 2
40 x 25 88 3 49 2
50 x 25 91 3 55 2.5
65 x 25 93 3 62 2.5
80 x 25 104 3.5 68 2.5
100 x 25 112 3.5 84 3
40 x 32 95 3 50 2
50 x 32 99 3 56 2.5
65 x 32 104 3.5 63 2.5
80 x 32 112 3.5 71 2.5
100 x 32 123 3.5 84 3
150 x 32 135 4 112 3.5
50 x 40 107 3.5 58 2.5
65 x 40 112 3.5 64 2.5
80 x 40 117 3.5 83 3
100 x 40 126 3.5 86 3
150 x 40 140 4 115 3.5
65 x 50 123 3.5 65 2.5
80 x 50 129 3.5 74 2.5
100 x 50 142 3.5 86 3
150 x 50 152 4 115 3.5
80 x 65 142 3.5 77 3
100 x 65 152 4 89 3
150 x 65 170 4 120 3.5
100 x 80 167 4 92 3
150 x 80 184 4 120 3.5
150 x 100 210 4 125 3.5
